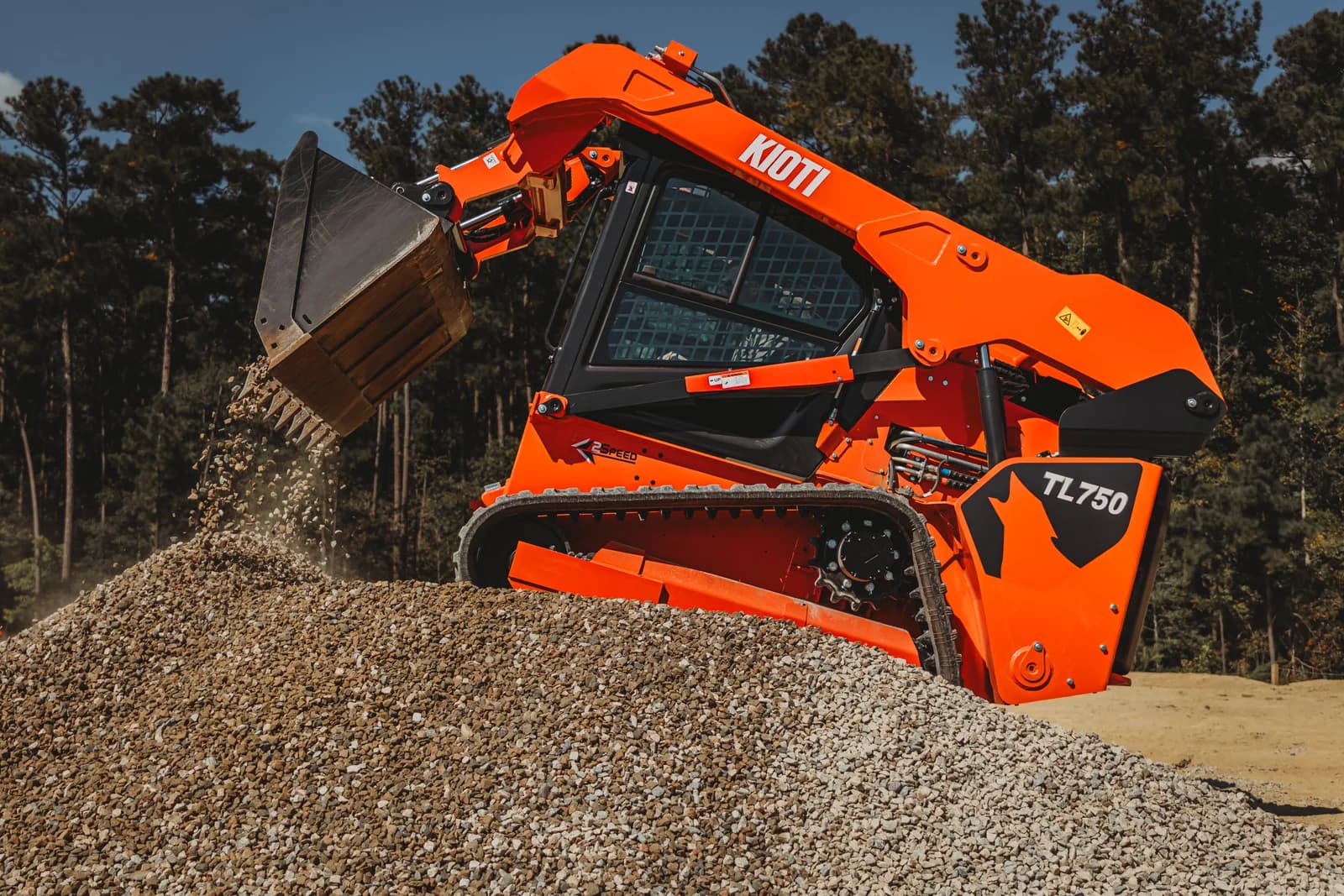

TL750U-PL
KIOTI · Track Loader
The all new TL750 track loader from Kioti! Open station model
Overview
Engine Horsepower
74 hp
Weight
9,689 lb
Category
Track Loader
Specifications
Engine
RPM2,400 rpm
Fuel TypeDiesel
Engine Model4HTI4
Engine Power73.60 hp (54.90 kW)
Oil Capacity2.40 gal (9 L)
Fuel Capacity26.40 gal (100 L)
Coolant Capacity1.10 gal (4.20 L)
Engine Displacement148.60 cu. in. (2,435 cc)
Engine ManufacturerKIOTI
Radiator Coolant Capacity2.70 gal (10.40 L)
Hydraulics
Lift ControlISO Pilot
Lift Arm PathVertical
Tank Capacity10 gal (38 L)
Hydraulics HP - Standard41.80 hp (31.10 kW)
Hydraulic Flow - Standard21.90 gpm (82.90 lpm)
Hydraulic Pressure - Standard3,335 psi (230 bar)
dimensions
Width70.90 in (1,800 mm)
Height Max163.80 in (4,160 mm)
Rear Tread55.10 in (1,400 mm)
Front Tread55.10 in (1,400 mm)
Track Width15.70 in (400 mm)
Dump Angle Max42 °
Departure Angle25 °
Height with Cab81.90 in (2,080 mm)
Ground Clearance8.70 in (220 mm)
Width with Bucket74.40 in (1,890 mm)
Length with Bucket144.70 in (3,675 mm)
Ground Contact Area889.70 in² (0.57 m²)
Length without Bucket116.10 in (2,950 mm)
Overall Length of Track176.10 in (4,472 mm)
Height with Cab & Beacon85.70 in (2,178 mm)
Hinge Pin Height at Carry203 in (5,156.20 mm)
Length of Track on Ground56.50 in (1,435 mm)
Reach at Max Lift and Dump43.20 in (1,098 mm)
Bucket Pin Reach at Max Lift23.50 in (597 mm)
Hinge Pin Height at Max Lift130.30 in (3,310 mm)
Rack Back Angle at Max Height88 °
Turning Radius Center to Rear67.30 in (1,709 mm)
Clearance at Max Lift and Dump101.80 in (2,585 mm)
Operating weight with operator9,689.30 lb (4,395 kg)
Rack Back Angle at Ground Level29 °
Turning Radius Center to Bucket87.50 in (2,223 mm)
Turning Radius Center to Coupler57.10 in (1,450 mm)
Operating weight without operator9,524 lb (4,320 kg)
Operating Specs
Tipping Load6,570 lb (2,980 kg)
Traction Force6,482 lb (2,940 kg)
Breakout Force, Lift5,016 lb (2,275 kg)
Travel Speed Max Speed7.10 mph (11.50 km/h)
Travel Speed Min Speed4.70 mph (7.50 km/h)
Travel Speed Forward Speeds2
Travel Speed Reverse Speeds2
Breakout Force, Tilt (Bucket)5,512 lb (2,500 kg)
Rated Operating Capacity (35% of Tip Load)2,299.50 lb (1,043 kg)
Rated Operating Capacity (50% of Tip Load)3,285 lb (1,490 kg)
Rated Operating Capacity with Optional Counterweight2,377 lb (1,078 kg)
Description
The all new TL750 track loader from Kioti! Open station model
