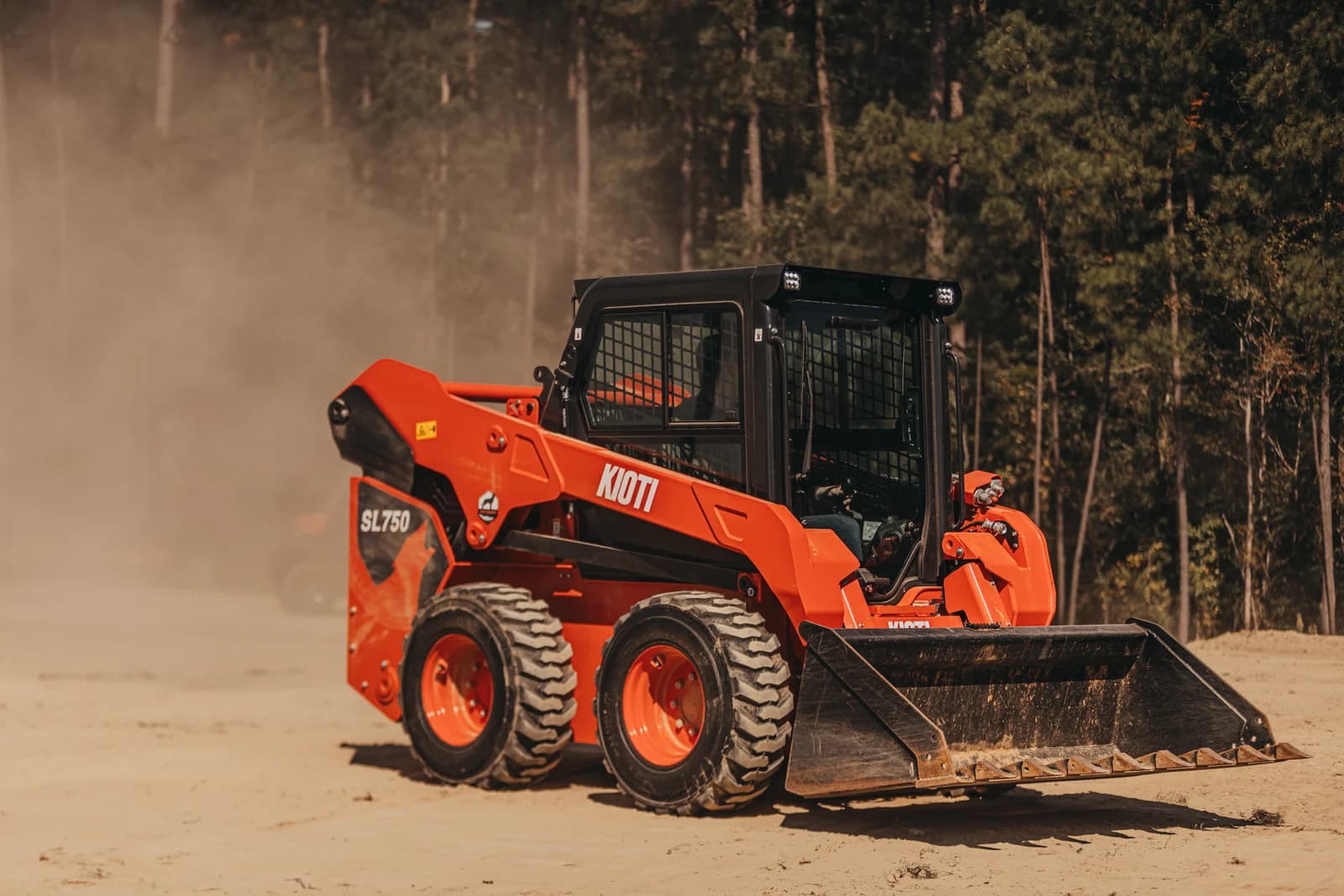

SL750U-PL
KIOTI · Skid Steer
The all new Kioti SL750 skid steer loader! Open station model
Overview
Engine Horsepower
74 hp
Weight
8,362 lb
Category
Skid Steer
Specifications
Engine
RPM2,400 rpm
Fuel TypeDiesel
Engine Model4HTI4
Engine Power73.60 hp (54.90 kW)
Oil Capacity2.40 gal (9 L)
Fuel Capacity26.40 gal (100 L)
Coolant Capacity1.10 gal (4.20 L)
Engine Displacement148.60 cu. in. (2,435 cc)
Engine ManufacturerKIOTI
Radiator Coolant Capacity10.40 gal (2.70 L)
Hydraulics
Lift ControlISO Pilot
Lift Arm PathVertical
Tank Capacity10 gal (38 L)
Hydraulics HP - Standard41.80 hp (31.10 kW)
Hydraulic Flow - Standard21.90 gpm (82.90 lpm)
Hydraulic Pressure - Standard3,335 psi (230 bar)
dimensions
Height Max160.20 in (4,068 mm)
Rear Tread59.60 in (1,513 mm)
Front Tread59.60 in (1,513 mm)
Dump Angle Max42 °
Departure Angle25 °
Height with Cab81.20 in (2,063 mm)
Ground Clearance7.70 in (195 mm)
Wheelbase Length47.20 in (1,200 mm)
Width with Bucket74.40 in (1,890 mm)
Length with Bucket144.70 in (3,675 mm)
Length without Bucket116.50 in (2,960 mm)
Body Width Above Tires71.70 in (1,820 mm)
Height with Cab & Beacon85.10 in (2,161 mm)
Hinge Pin Height at Carry8.30 in (212 mm)
Reach at Max Lift and Dump37.40 in (949 mm)
Bucket Pin Reach at Max Lift16.30 in (414 mm)
Hinge Pin Height at Max Lift126.60 in (3,215 mm)
Rack Back Angle at Max Height88 °
Turning Radius Center to Rear70.40 in (1,788 mm)
Clearance at Max Lift and Dump97.40 in (2,473 mm)
Operating weight with operator8,362 lb (3,793 kg)
Rack Back Angle at Ground Level29 °
Turning Radius Center to Bucket85 in (2,158 mm)
Bumper Overhang Behind Rear Axle44.40 in (1,127 mm)
Turning Radius Center to Coupler60.90 in (1,548 mm)
Operating weight without operator8,197 lb (3,718 kg)
Operating Specs
Tipping Load5,380 lb (2,440 kg)
Traction Force6,347 lb (2,879 kg)
Chain Box Capacity3.40 gal (13 L)
Breakout Force, Lift5,016 lb (2,275 kg)
Travel Speed Max Speed12.05 mph (19.40 km/h)
Travel Speed Min Speed7.15 mph (11.50 km/h)
Travel Speed Forward Speeds2
Travel Speed Reverse Speeds2
Breakout Force, Tilt (Bucket)5,512 lb (2,500 kg)
Rated Operating Capacity (35% of Tip Load)1,883 lb (854 kg)
Rated Operating Capacity (50% of Tip Load)2,690 lb (1,220 kg)
Rated Operating Capacity with Optional Counterweight2,833 lb (1,285 kg)
Description
The all new Kioti SL750 skid steer loader! Open station model
