NewTractor
KIOTI DK4220SEHB
Package (6 items)
DK4220SEHB (Tractor)$31,995
KL5521 (Loader)$7,295
223008L (Tire)$1,086
223008R (Tire)$1,049
5560R4FL (Tire)$480
5560R4FR (Tire)$497
Package Total$42,401
39.6 HP3,723 lbsOTLE
Description
Rugged 40 HP, 4 wheel drive Kioti utility tractor with a 3 range hydrostatic transmission. Convenient forward and reverse pedals floor board for easy forward and reverse direction changes. The DK20SE series from Kioti is the product of years of research, testing, and refinement. Get into one today!
Specifications
Weight (lb)3,723
Engine Horsepower39.6
PTO
PTO TypeIndependent
Mid Speed2,000
PTO Power29.10 hp (21.70 kW)
Rear Speed540
Hitch
TypeThree Point
CategoryCategory 1
Control TypePosition
Lift Capacity2,716 lb (1,232 kg)
Engine
RPM2,600 rpm
Model3H-TH4D
Power39.60 hp (29.50 kW)
Fuel TypeDiesel
Displacement111.40 cu. in. (1,826 cc)
Fuel Capacity12.70 gal (48 L)
Engine ManufacturerKIOTI
Hydraulics
PumpGear
Lift Capacity2,716 lb (1,232 kg)
Pump Capacity16.50 gpm (62.40 lpm)
dimensions
Width62.80 in (1,596 mm)
Height96.80 in (2,458 mm)
Weight3,523 lb (1,598 kg)
Rear Tread49.30 in (1,251 mm)
Front Tread49.40 in (1,254 mm)
Turning Radius8.95 ft (2.72 m)
Ground Clearance14.50 in (368 mm)
Wheelbase Length71.30 in (1,810 mm)
Length with Hitch125.50 in (3,189 mm)
Drive Train
BrakesWet Multi Disc
ClutchNone
SteeringHydrostatic Power Steering
Transmission
ShuttleHydrostatic
TransmissionHydrostatic
Travel Speeds Forward3 Ranges w/ Infinite Speeds
Travel Speeds Reverse3 Ranges w/ Infinite Speeds
Travel Speeds Maximum Speed18.50 mph (29.70 km/h)
Travel Speeds Minimum Speed0 mph (0 km/h)
Travel Speeds Max Reverse Speed12.92 mph (20.80 km/h)
Travel Speeds Min Reverse Speed0 mph (0 km/h)

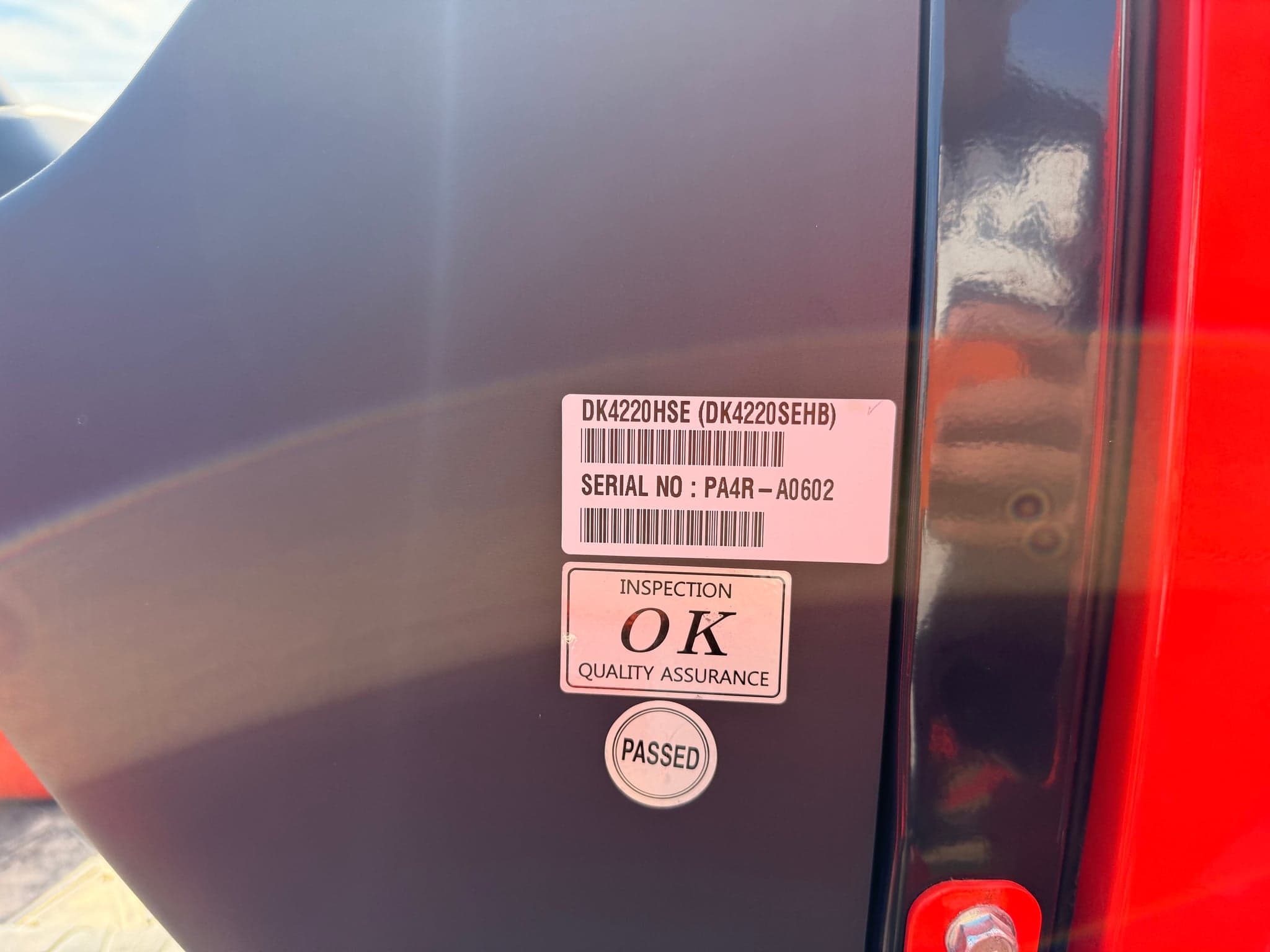

Stock #: PA4RA0602
$42,401
Complete package price
