NewMini Excavator

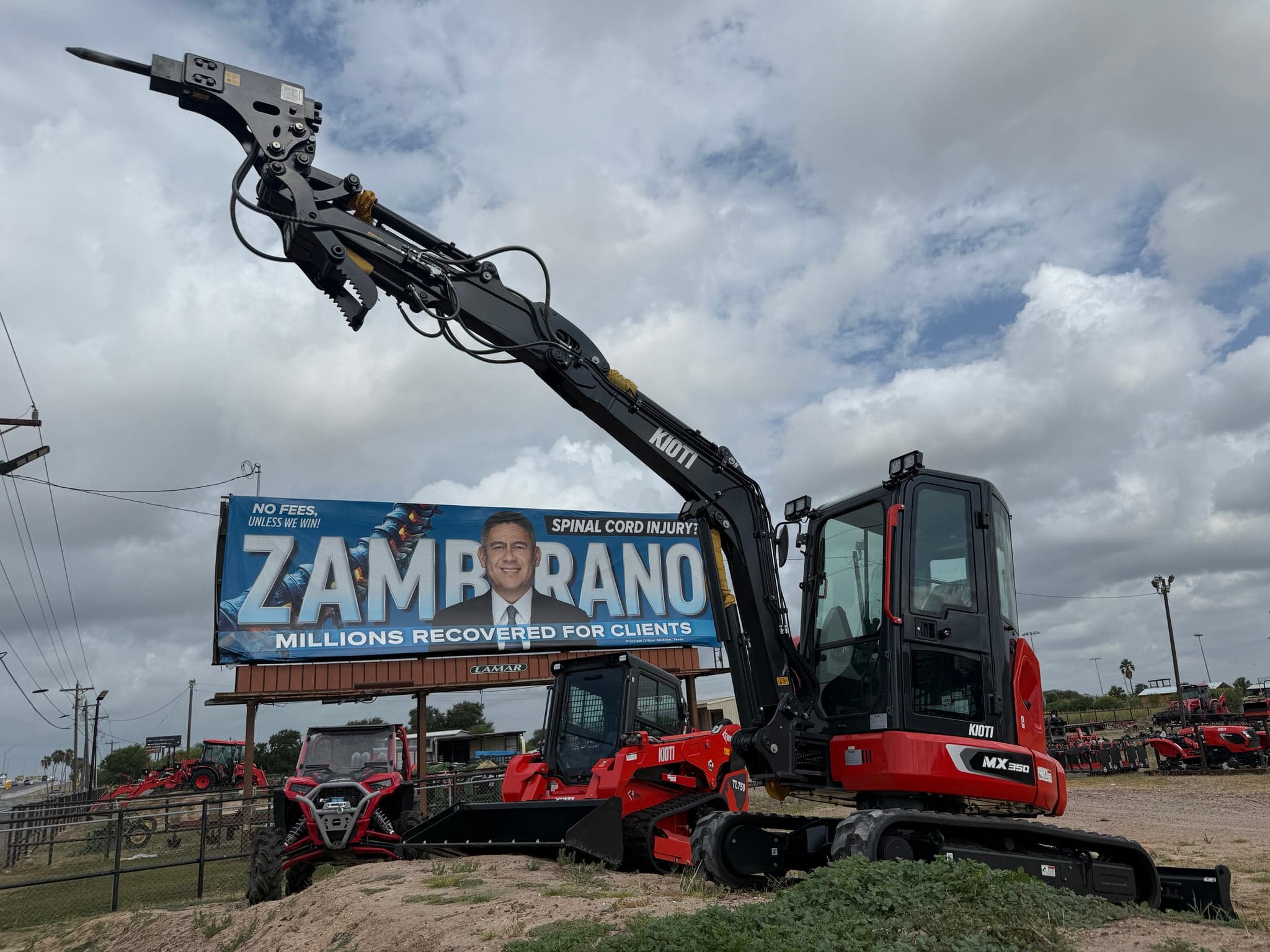

KIOTI MX350AE
Package (2 items)
MX350AE (Mini Excavator)$67,995
MXA013 (Mini Excavator Accessories)$3,995
Package Total$71,990
23.2 HP9,105 lbsOTLE
Description
The all new 3.5 ton mini excavator from KIOTI with extended boom. Comes with 24 inch bucket
Specifications
testNo
TireSizeNo
GVWR (lb)No
Plow TypeNo
Cab / ROPSCAB
Drive TypeNo
Width (in)5.7
Height (in)8.2
Length (in)15.11
Weight (lb)9,105
Tire OptionsNo
TransmissionNo
Wrapping TypeNo
Number of RowsNo
PTO HorsepowerNo
PTO HP RequiredNo
Round Bale SizeNo
Number of ShanksNo
Bucket Width (in)No
Engine Horsepower23.2
Cutting Width (in)No
Mahindra PowerpackNo
Lifting Height (in)15.11
Quantity of BottomsNo
Hydraulic Flow (GPM)26.2
Towing Capacity (lb)No
Lifting Capacity (lb)No
3-Point Hitch CategoryNo
Bucket Capacity (yd³)No
Carrying Capacity (lb)No
Bed Payload Capacity (lb)No
3-Point Lift Capacity (lb)No
Cutting Thickness CapacityNo
Engine
RPM1 rpm
Fuel TypeDiesel
AspirationNaturally Aspirated
Engine Model3TNV88F
Engine Power23.20 hp (17.30 kW)
Oil Capacity1.80 gal (6.70 L)
Fuel Capacity14.50 gal (55 L)
Coolant Capacity1.90 gal (7 L)
Engine Displacement100.20 cu. in. (1,642 cc)
Engine ManufacturerYanmar
Radiator Coolant Capacity33 gal (44 L)
Hydraulics
Hydraulic Reservoir11.10 gal (42 L)
Rated Lift Capacity (Over Side 10' Reach)1,798 lb (815 kg)
Rated Lift Capacity (Over Blade 10' Reach)2,315 lb (1,050 kg)
dimensions
Width68.40 in (1,700 mm)
Height8.20 in (2,500 mm)
Length181.30 in (4,860 mm)
Weight9,105 lb (4,130 kg)
Shoe Width12 in (300 mm)
Ground Clearance10 in (258 mm)
Crawler / Track Length73.30 in (2,100 mm)
Operating Specs
Swing Speed33 rpm
Main Pump TypeGear
Boom Swing Angle99 ° / 66 °
Maximum Flow & Pressure26.2 gpm / 2611 psi (99 lpm / 180 bar)
Auxiliary Hydraulic Flow (AUX 1 / AUX 2)15.6 gpm / 7.9 gpm (60 lpm / 30 lpm)
Auxiliary Hydraulic Pressure (AUX 1 / AUX 2)1435 psi / 972 psi (99 bar / 67 bar)
Stock #: T0KSA0117
$71,990
Complete package price
